Setting up Wi-Fi on Corega CG-WLBARGO Router. After setting up Wi-Fi on Corega CG-WLBARGO you can wirelessly connect your Wi-Fi enabled devices to it.

. CG-WLBARGO 54MWireless broadband Router User Manual. Contents 1. Product Introduction 1.1 Package Contents 1.2 Features 1.3 Hardware Introduction Product Installation Hardware Installation Installation Procedure.6 3. PC Setting 3.1 TCP/IP Configuration 3.1.1 Windows Vista O/S 3.1.2 Windows XP O/S 3.1.3 Windows 2000 O/S 3.1.4 Windows 98/95/ME O/S 3.1.5 Mac OS 8.x9.x O/S 3.1.6 Mac OS X O/S Browser Configuration.

Contents WLBARGO Manual.33 6.1 Features.34. Product Introduction Corega WLBARGO is a 54M wireless broadband Router with IEEE802.11g wireless access point standard.

It supports TX-burst technology which can effectively improve the transmit speed. It also contains 5 dBi detachable antenna which can maximum transmit length up to 500m. Moreover, WLBARGO supports security settings such as WEP, WPA and WPA2.

WLBARGO Manual 1.3 Hardware Introduction 1. Reset Button Press this button it will reset to default setting 2. WLAN LED (Green) ON:Connected 3. Power LED (Green) Indicate power status 4.Status LED (Orange) Steady on: Abnormal Blink:Connected Flash:Firmware upgrade/Reboot 5. WAN LED (Green) ON:Connected Blink:Transmitting or receiving data 6. 192.168.1.1 in the browser’s address bar, and press enter.

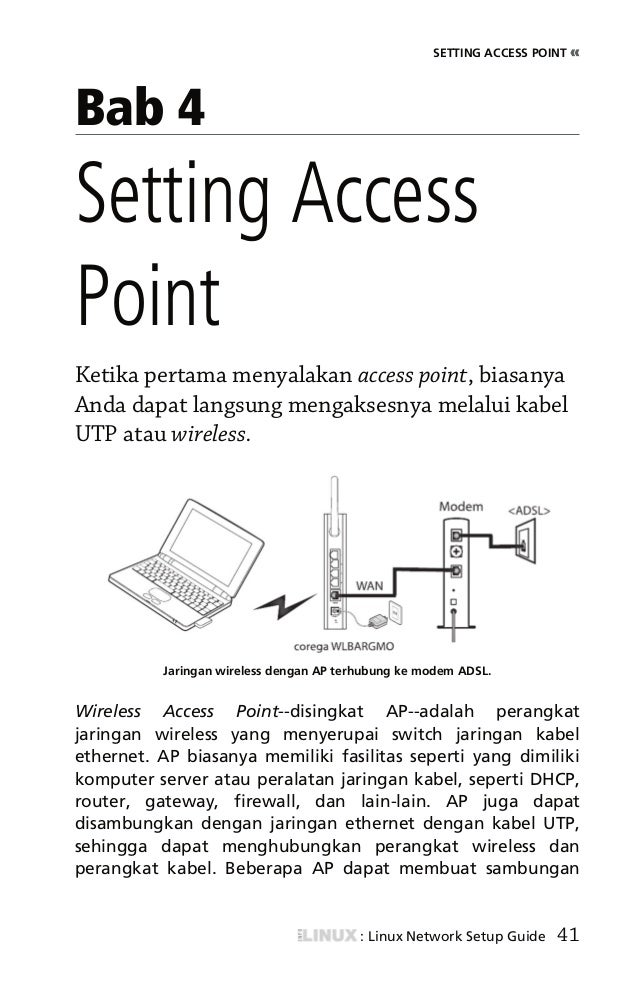

User name: root, leave Password empty, and press Submit.Select Quick Installation Setting for quick installation-Setting the Wirless Security-Use PC with com- patible wireless card for wireless connection. Modem corega WLBARGO WLBARGO Manual. WLBARGO Manual 3.1 TCP/IP Configuration The following steps and screenshots maybe dissimilar in different operat- ing systems.This manual takes Windows XP/2000, 95/98/ME, and Mac O/S as examples: 3.1.1 Windows Vista 1. ClickStart select Control Panel Double click Network and Sharing Center=Click Local Area Network. Select Internet Protocol Version Properties 。.

Wireless Router Setup Screen

Select the General tab=click both Obtain an IP address automatically and Obtain DNS Server address automatically=click Advanced. Select the DNS tab=uncheck the Register this connection's addresses in DNS box=click OK. Close all pages. (TCP/IPv )=click WLBARGO Manual. WLBARGO Manual 3.1.2 Windows XP O/S (1) Enter Control Panel - click Network Connection - right click and select Open. (2) Click Local Area Connection and right click and select Properties. (3) Click General - click Internet Protocol (TCP/IP), and click Properties.

WLBARGO Manual (4) Click General, select Obtain an IP Address Automatically, and Obtain DNS Server address automatically, and press Advance. WLBARGO Manual (5) Click DNS tab, unselect Register this connection’s address in DNS, press OK. (6) Go back to Internet Protocol TCP/IP and press OK. (7) Press OK to close Local Area Connection Properties. 3.1.3 Windows 2000 O/S (1) Go to My Computer, and enter Control Panel, click open Network and Dial Up Connections.

(2) Right click Local Area Connection, and select Properties.Note: Please check if TCP/IP had been installed in the Local Area Connection. (3) Click Internet protocol (TCP/IP) and click Properties.

WLBARGO Manual. WLBARGO Manual (4) Select Obtain an IP address automatically, and Obtain DNS server address automatically. And click Advance. (5) Click DNS tab in Advance TCP/IP setting page, and unselect Register this connection’s DNS address, and press OK. (6) Please close all pages. 3.1.4 Windows 98/95/ME O/S The configurations in all Windows 98/95/ME are the same, and this manual takes Windows 98 as an example. (1) Enter Control Panel, and double click Network.

(2) Click Configuration tab, and select TCP/IP, click Properties. (3) Select IP Address, and select Obtain IP address automatically. WLBARGO Manual (4) Click Gateway tab, remove all the gateways, and press OK to close the window. (5) Go to Network and press OK to close the page. (6) The Restart the windows screen will pop-up, press OK to restart the PC. If the PC is not shown this message, restart the PC manually.

3.2 Browser Configuration The following examples are for Windows Vista/XP, skip this chapter if you are using Windows 2000/98/ME. 3.2.1 Windows Vista O/S. Open Internet Explorer, click Tools=selectInternet Options.Note:When the dial up connection page appears, please close it, do not connect to Internet.

WLBARGO Manual. Uncheck the three boxes on the Local Area Network Setting page=clickOK. Click OK on the Internet Options page. 3.2.2 Windows XP O/S The following examples are for Windows XP O/S, skip this chapter if you are using Windows 2000/98/ME. (1) Open Internet Explorer (IE 6.0), select Tools menu and click Internet Options. (3) Unselect all three options in the Local Area Network LAN Setting.

(4) Press OK in the Internet Options. WLBARGO Manual. WLBARGO Manual 3.2.3 Mac O/S (1) Open Internet Explorer (IE 5.0) Go to Edit in the menu bar, select Internet Explorer Preferences. (2) Select Proxies options in Network on the left-side configuration items. (3) Do not select Web Proxy, press OK. (2) Type 192.168.1.1 in the browser’s address bar, press Enter.Note: 192.168.1.1 is the IP address for configuring CG-WLBARGO, and is not corega’s company public internet address.

After you have completed the configuration, connect to for testing the connection. WLBARGO Manual (5) Click Quick Installation Setting. (6) When seeing this screen shot, click on Next. (7) Select your connection type.

Please make sure that your ADSL connection type is correct as you enter; the correct information can be obtained from the documents given by your ISP. 4.1.1 Auto obtain IP (DHCP) (1) If you are subscribing to auto obtain IP service ( or DHCP Dynamic IP) from your ISP, such as Cable Modem that obtain an IP automatically for connection, please select Auto obtain IP(DHCP). Click on Next. (2) Press MAC address clone to obtain the Ethernet card’s MAC address.Then press Next. (5) Open the web browser (IE 6.0), and test with any website for testing the connection. Note: if the connection to the website fails.

Restart your Cable Modem, and check the installation of CG-WLBARGO properly, such as the LAN/WAN connections. After verifying that, restart this chapter again for installation.

4.1.2 Fixed IP (1) If you are subscribing Fixed IP connection from your ISP, then select Fixed IP, and click on Next. (2) Enter the network setting provided by your ISP.Then click on Next. WLBARGO Manual. WLBARGO Manual (3) Click on Save to perform connection tests. (4) Within seconds, the result of the connection test will be appeared in the dialogue box to indicate the connection status. When Connection OK appears, click on Close.

(5) Open the web browser (IE 6.0), and test with any website for testing the connection.Note: If the connection to the website fails. Please make sure the data you entered are correct, or any mistake occured in the process of the installation, such as the LAN/WAN connections.

WLBARGO Manual (3) Click on Save to perform connection tests. (4) Within seconds, the result of the connection test will be appeared in the dialogue box to indicate the connection status.

When Connection OK appears, click on Close. (5) Open the web browser (IE 6.0), and test with any website for testing the connection.Note: If the connection to the website fails. Please make sure the data you entered are correct, or any mistake occured in the process of the installation, such as the LAN/WAN connections. (2) Go Control Panel - Network connection again -Right click Wireless network connection,select Available wireless network connection, choose one available network e.g. ) corega, and click Connect. (3) Connection status will appear in the bottom right of the screen., and click Connect.

(3) Connection status will appear in the bottom right of the screen.Note: The wireless connection has been established now. Please go to corega’s website at to check the connection to the Internet. WLBARGO Manual.

Wireless Security Configuration WLBARGO Manual To prevent from unlawful access to your network, you are recommended to perform wireless security setting.Type 192.168.1.1 in the browser’s address bar, press Enter. Enter the function menu, ad click on 802.11g/b Security set- ting item. And select WEP or WPA setting. 5.1 WEP Setting In order to prevent your information from being hacked, it is recommended to use WEP encryption when using wireless connection.

5.2 WPA Setting WPA is encrypted by a periodic update, making it more difficult to be hacked. Home users and company users are recommended to use and respectively.

(1) Select WPA-PSK, WPA2-PSK or WPA/WPA2-PSK(Recommended) in the column of Authentication. WLBARGO Manual (1) Select WPA2-EAP or WPA/WPA2-EAP(Recommended). In the column of Authentication a. WPA2-EAP: The 2nd generation encryption skill performs stricter protec- tion than before. Before selection, please check the function availability of your network adapter, or select b.

Function Introduction The chapter will briefly introduce all functions of this product, and spell them out. Log in the management program and the below interface will appear. 6.1 Features Mode Wireless Function Select and switch to Router(wireless broadband router) or AP(Acess point) mode.Note:When switch to AP mode, the product will stop sending IP, the WAN port will not be function. WLBARGO Manual The internet setting can be configured, according to your internet connection type, WAN Speed - default setting is recommended. For PPPoE: Username Password Password confirm Service name Connection type IdIe Timeout Authentication and MTU value DNS Server.

B.For auto obtain IP (DHCP): Type Press MAC address clone to obtain the Ethernet card's MAC address. Computer name Please refer to your ISP internet service information, add/edit Computer name.

MTU value Maximum Transmission Unit.Please accept the deafault setting:1500 Byte. DNS Server Select Auto Setup or Manual Setup to configure DNS1 and DNS2 servers. WLBARGO Manual C. For fixed IP WAN IP address Subnet mask Default gateway DNS server Multi-NAT Dynamic DNS is a connection of LAN’s virtual server through URL internet ac- cess or called dynamic IP (No fixed IP address) that also can connect through URL internet access. (3) enter login name.

(4) enter login password. (5) Domain name. (6) Click Save.Note: Corega does not provide DDNS service.

APA (American Psychological Association) style is most commonly used to cite sources within the social sciences. This resource, revised according to the 6th edition, second printing of the APA manual, offers examples for the general format of APA research papers, in-text citations, endnotes/footnotes, and the reference page. Citefast is a FREE APA, MLA and Chicago citation generator. Generate references, bibliographies, in-text citations and title pages quickly and accurately. (based on the 6th edition of the APA. Provide the address of the site within the text of your paper. According to the APA. The APA Style website is a. To the 6th edition, second printing of the APA manual, offers examples for the general format of APA research papers, in-text. In-text citation. In text citation of a website apa 6th edition. CITATIONS IN THE TEXT: APA uses the author-date method of citation. The last name of the author and the date of. APA 6th Edition - Citation Guide Author.

Please register on one DDNS provider web site before you setup this function. VPN PPTP pass through VPN IPSec pass through. WLBARGO Manual (1) Select Enable to enable DHCP server function. Default is enable. (2) Enter DHCP servers start IP and end IP.

(3) Then click on save button to save the setting. The following table display the current connected users information, you can add/edit/delete users data. ESSID ESSID is a name that makes wireless adapter identify this Router.The default ESSID is corega. Mode. 802.11b/g: auto connect in either 802.11b or 802.11g. 802.11g: connect in 802.11g mode.

Channel When there is interruption, other channels can be selected. WLBARGO Manual This section contains WEP,WAP-PSK, WPA2-PSK, WPA-EAP and WPA2-EAP encryption setting, please refer to Chapter 5 to get detail information. Wireless to wireless connection Wireless to wire connection MAC address filter list Use MAC address filter to control network 40 40 Configure wireless communication between clients. Configuring firewall and no response to WAN Ping requests.

This function can limit or control some certain networking services: (1) Enter the range of limited IP address. (2) Select one of limit/stop networking services. (3) Select one of protocol. (4) Enter the range of limited port number.

WLBARGO Manual This function can forbid users to access certain website on the Internet: (1)Enter the forbidden URL or keywords (2) Then click save to complete the configuration. All the forbidden data will be displayed in the table below. If the online game’s port range is unknown, or its parameter is different every login, DMZ function is recommended. While this function starts, select the PC, being allowed to connect with, then click Save.Note: 1.The PC becomes vulnerable to being hacked if DMZ function starts. Please only use it in need.

WLBARGO Manual All routing logs are displayed in the table. Activating this function can detect the device or software of LAN, supporting UPnP. For example: online games supporting UPnP or Windows Messenger (Ver. 4.7 or above), MSN Messenger (Ver. 5.0 or above) and so forth. Set its status usable.

Admin login name Admin login password Default password is empty. Password comfirmation Connection Timeout Back to default setting Reboot Save Setting Load Setting Language Firmware update Time Setup Remote control PING testing User name for login this management program. Default setting is root.

(3) When the countdown starts, do not click any button. The update will complete soon afterward.Note:You may proceed Check for updates to look up the latest firmware from corega's web page.Remote control The setting allows accessing the management program via remote control. The activation processes are as follows: (1) Select Enable.

(2) Indicate 1 9600 for parameters of port range. ) 8080 (Recommended keeping default values). (3) Click on Save after completing settings. ) Assume the port value is 8080, enter IP address as the type: xxx.xxx.xxx.xxx: 8080 to access the management program by remote control. WLBARGO Manual System log is displayed in the table. An E-mail address can be set below. Special incidents will be recorded and sent to the appointed E-mail address.

After entering all information, click Save to save and complete the setting. 48 48 48 48 48. When the installation fails or the connection doesn’t succeed, it’s recommend- ed to take the following actions. (1) Find your problem in the troubleshooting collection.

(2) Search on our official website at for the latest information of this product. (3) Go to our official website at Support -select the Online Customer Support item-fill the form page and note.

Failure in firmware update. A: If the firmware update fails, please contact us by Online Customer Support webpage. Please go to the website of - click on Support and right click the Online Customer Support item - Filling the form. (1) Click Start = Programs = Command prompt.

(2) Input ipconfig = Enter. (3) Confirm IP address (which sould be 192.168.1.x). If the IP is incorrect, please enter 1-byte character as ipconfig /renew = Press Enter. (1) Click Start =.
